Membuat Objek Balok Bengkok 3D Solid / Padat

Siang hari disaat cidera ibu jari kaki kanan mulai sembuh...


Selamat Siang rekan-rekan sekalian...

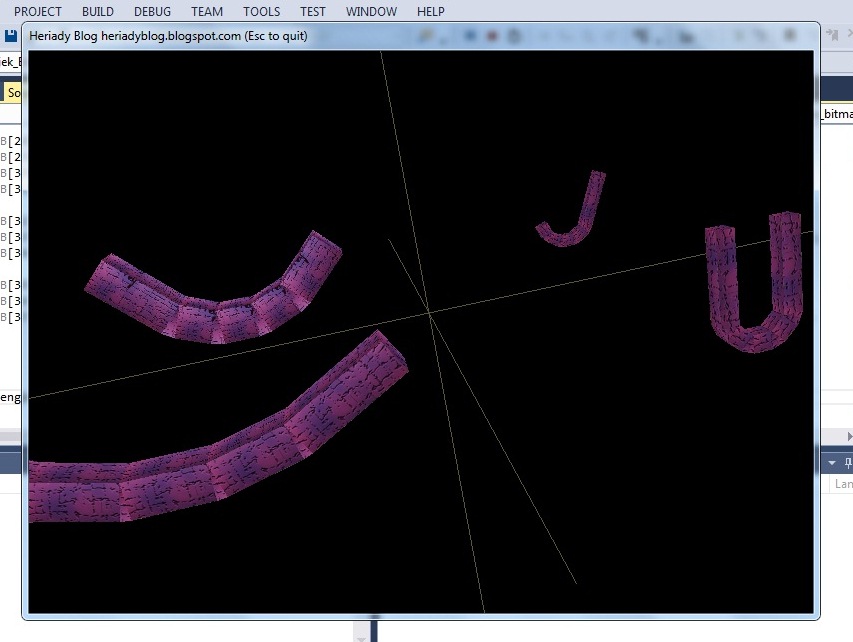

Setelah di artikel sebelumnya aku membahas tentang objek 3D balok bengkok wire / kawat, sekarang  kita ngobrol  cara pemberian tekstur untuk objek tersebut.


Banyak cara yang dapat digunakan untuk memberi tekstur pada balok bengkok, prinsipnya hampir sama dengan tekstur pada balok, hanya pada balok bengkok terdapat polygon yang berbentuk segitiga (prisma). Berikut ini aku akan menerangkan cara sederhana untuk memberi tekstur balok bengkok, rekan-rekan dapat berkreasi sendiri jika ingin mengembangkannya.


Gambar di atas adalah gambar jaring-jaring balok bengkok yang direntangkan dengan sisi-sisi balok bagian atas dihilangkan(semua polygon balok bagian atas tidak digambar pada gambar 1, karena polygon balok bagian atas identik dengan polygon balok bagian bawah).
Aku membagi polygon-polygon balok bengkok menjadi A, B, C, D, E, F, G, H ,I, dan J. Dengan cara yang sama seperti objek 3D sebelumnya masing-masing tekstur koordinat untuk masing-masing polygon dapat dihitung seperti pada tabel berikut:


NB.
Pada tabel di atas nilai JT ditentukan oleh user, tidak dihitung seperti pada objek 3D balok atau pipa.

Setelah masing-masing polygon dihitung tekstur koordinatnya seperti pada tabel di atas maka langkah selanjutnya tinggal menempelkan tekstur koordinat  tersebut ke masing-masing polygon balok bengkok.

Berikut potongan program untuk tekstur balok bengkok:

void load_Balok_Bengkok_TextureKoordinat(float sudut_alpha, float L1, float L2, float L3, float tinggi, float lebar, float JT, Koordinat TK_BalokB[38])
{
    double pi = 3.1415926535;
    double half_pi = pi * 0.5;
    double sudut_half_teta;

    sudut_half_teta = (180 - sudut_alpha) / 4;
    sudut_half_teta = (sudut_half_teta / 180) * pi * 0.5;

    TK_BalokB[0].X = 0;            TK_BalokB[0].Y = 0;
    TK_BalokB[1].X = tinggi / JT;  TK_BalokB[1].Y = 0;
    TK_BalokB[2].X = tinggi / JT;  TK_BalokB[2].Y = lebar / JT;
    TK_BalokB[3].X = 0;            TK_BalokB[3].Y = lebar / JT;

    TK_BalokB[4].X = 0;                                             TK_BalokB[4].Y = 0;
    TK_BalokB[5].X = (2 * tinggi*(float)sin(sudut_half_teta)) / JT; TK_BalokB[5].Y = 0;
    TK_BalokB[6].X = (2 * tinggi*(float)sin(sudut_half_teta)) / JT; TK_BalokB[6].Y = lebar / JT;
    TK_BalokB[7].X = 0;                                             TK_BalokB[7].Y = lebar / JT;

    TK_BalokB[8].X = 0;            TK_BalokB[8].Y = 0;
    TK_BalokB[9].X = L1 / JT;      TK_BalokB[9].Y = 0;
    TK_BalokB[10].X = L1 / JT;     TK_BalokB[10].Y = lebar / JT;
    TK_BalokB[11].X = 0;           TK_BalokB[11].Y = lebar / JT;

    TK_BalokB[12].X = 0;           TK_BalokB[12].Y = 0;
    TK_BalokB[13].X = L2 / JT;     TK_BalokB[13].Y = 0;
    TK_BalokB[14].X = L2 / JT;     TK_BalokB[14].Y = lebar / JT;
    TK_BalokB[15].X = 0;           TK_BalokB[15].Y = lebar / JT;

    TK_BalokB[16].X = 0;           TK_BalokB[16].Y = 0;
    TK_BalokB[17].X = L3 / JT;     TK_BalokB[17].Y = 0;
    TK_BalokB[18].X = L3 / JT;     TK_BalokB[18].Y = lebar / JT;
    TK_BalokB[19].X = 0;           TK_BalokB[19].Y = lebar / JT;

    TK_BalokB[20].X = 0;            TK_BalokB[20].Y = 0;
    TK_BalokB[21].X = L1 / JT;      TK_BalokB[21].Y = 0;
    TK_BalokB[22].X = L1 / JT;      TK_BalokB[22].Y = tinggi / JT;
    TK_BalokB[23].X = 0;            TK_BalokB[23].Y = tinggi / JT;

    TK_BalokB[24].X = 0;            TK_BalokB[24].Y = 0;
    TK_BalokB[25].X = L2 / JT;      TK_BalokB[25].Y = 0;
    TK_BalokB[26].X = L2 / JT;      TK_BalokB[26].Y = tinggi / JT;
    TK_BalokB[27].X = 0;            TK_BalokB[27].Y = tinggi / JT;

    TK_BalokB[28].X = 0;            TK_BalokB[28].Y = 0;
    TK_BalokB[29].X = L3 / JT;      TK_BalokB[29].Y = 0;
    TK_BalokB[30].X = L3 / JT;      TK_BalokB[30].Y = tinggi / JT;
    TK_BalokB[31].X = 0;            TK_BalokB[31].Y = tinggi / JT;

    TK_BalokB[32].X = (tinggi*(float)sin(sudut_half_teta)) / JT;
    TK_BalokB[32].Y = 0;
    TK_BalokB[33].X = (2 * tinggi*(float)sin(sudut_half_teta)) / JT;
    TK_BalokB[33].Y = (tinggi*(float)cos(sudut_half_teta) / JT);
    TK_BalokB[34].X = 0;
    TK_BalokB[34].Y = (tinggi*(float)cos(sudut_half_teta) / JT);

    TK_BalokB[35].X = 0;
    TK_BalokB[35].Y = 0;
    TK_BalokB[36].X = (2 * tinggi*(float)sin(sudut_half_teta)) / JT;
    TK_BalokB[36].Y = 0;
    TK_BalokB[37].X = (tinggi*(float)sin(sudut_half_teta)) / JT;
    TK_BalokB[37].Y = (tinggi*(float)cos(sudut_half_teta) / JT);
}

void Balok_Bengkok_Solid(Vertex read_BalokB[32], Koordinat TK_BalokB[38], int index_bitmap)
{
    glBindTexture(GL_TEXTURE_2D, texture_merah);

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[20].X, TK_BalokB[20].Y);
    glVertex3f(read_BalokB[0].VX, read_BalokB[0].VY, read_BalokB[0].VZ);

    glTexCoord2f(TK_BalokB[23].X, TK_BalokB[23].Y);
    glVertex3f(read_BalokB[1].VX, read_BalokB[1].VY, read_BalokB[1].VZ);

    glTexCoord2f(TK_BalokB[22].X, TK_BalokB[22].Y);
    glVertex3f(read_BalokB[2].VX, read_BalokB[2].VY, read_BalokB[2].VZ);

    glTexCoord2f(TK_BalokB[21].X, TK_BalokB[21].Y);
    glVertex3f(read_BalokB[3].VX, read_BalokB[3].VY, read_BalokB[3].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[20].X, TK_BalokB[20].Y);
    glVertex3f(read_BalokB[4].VX, read_BalokB[4].VY, read_BalokB[4].VZ);

    glTexCoord2f(TK_BalokB[23].X, TK_BalokB[23].Y);
    glVertex3f(read_BalokB[5].VX, read_BalokB[5].VY, read_BalokB[5].VZ);

    glTexCoord2f(TK_BalokB[22].X, TK_BalokB[22].Y);
    glVertex3f(read_BalokB[6].VX, read_BalokB[6].VY, read_BalokB[6].VZ);

    glTexCoord2f(TK_BalokB[21].X, TK_BalokB[21].Y);
    glVertex3f(read_BalokB[7].VX, read_BalokB[7].VY, read_BalokB[7].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[2].X, TK_BalokB[2].Y);
    glVertex3f(read_BalokB[6].VX, read_BalokB[6].VY, read_BalokB[6].VZ);

    glTexCoord2f(TK_BalokB[3].X, TK_BalokB[3].Y);
    glVertex3f(read_BalokB[7].VX, read_BalokB[7].VY, read_BalokB[7].VZ);

    glTexCoord2f(TK_BalokB[0].X, TK_BalokB[0].Y);
    glVertex3f(read_BalokB[0].VX, read_BalokB[0].VY, read_BalokB[0].VZ);

    glTexCoord2f(TK_BalokB[1].X, TK_BalokB[1].Y);
    glVertex3f(read_BalokB[1].VX, read_BalokB[1].VY, read_BalokB[1].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[8].X, TK_BalokB[8].Y);
    glVertex3f(read_BalokB[1].VX, read_BalokB[1].VY, read_BalokB[1].VZ);

    glTexCoord2f(TK_BalokB[9].X, TK_BalokB[9].Y);
    glVertex3f(read_BalokB[2].VX, read_BalokB[2].VY, read_BalokB[2].VZ);

    glTexCoord2f(TK_BalokB[10].X, TK_BalokB[10].Y);
    glVertex3f(read_BalokB[5].VX, read_BalokB[5].VY, read_BalokB[5].VZ);

    glTexCoord2f(TK_BalokB[11].X, TK_BalokB[11].Y);
    glVertex3f(read_BalokB[6].VX, read_BalokB[6].VY, read_BalokB[6].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[11].X, TK_BalokB[11].Y);
    glVertex3f(read_BalokB[0].VX, read_BalokB[0].VY, read_BalokB[0].VZ);

    glTexCoord2f(TK_BalokB[10].X, TK_BalokB[10].Y);
    glVertex3f(read_BalokB[3].VX, read_BalokB[3].VY, read_BalokB[3].VZ);

    glTexCoord2f(TK_BalokB[9].X, TK_BalokB[9].Y);
    glVertex3f(read_BalokB[4].VX, read_BalokB[4].VY, read_BalokB[4].VZ);

    glTexCoord2f(TK_BalokB[8].X, TK_BalokB[8].Y);
    glVertex3f(read_BalokB[7].VX, read_BalokB[7].VY, read_BalokB[7].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[24].X, TK_BalokB[24].Y);
    glVertex3f(read_BalokB[8].VX, read_BalokB[8].VY, read_BalokB[8].VZ);

    glTexCoord2f(TK_BalokB[27].X, TK_BalokB[27].Y);
    glVertex3f(read_BalokB[2].VX, read_BalokB[2].VY, read_BalokB[2].VZ);

    glTexCoord2f(TK_BalokB[26].X, TK_BalokB[26].Y);
    glVertex3f(read_BalokB[9].VX, read_BalokB[9].VY, read_BalokB[9].VZ);

    glTexCoord2f(TK_BalokB[25].X, TK_BalokB[25].Y);
    glVertex3f(read_BalokB[10].VX, read_BalokB[10].VY, read_BalokB[10].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[24].X, TK_BalokB[24].Y);
    glVertex3f(read_BalokB[11].VX, read_BalokB[11].VY, read_BalokB[11].VZ);

    glTexCoord2f(TK_BalokB[27].X, TK_BalokB[27].Y);
    glVertex3f(read_BalokB[12].VX, read_BalokB[12].VY, read_BalokB[12].VZ);

    glTexCoord2f(TK_BalokB[26].X, TK_BalokB[26].Y);
    glVertex3f(read_BalokB[5].VX, read_BalokB[5].VY, read_BalokB[5].VZ);

    glTexCoord2f(TK_BalokB[25].X, TK_BalokB[25].Y);
    glVertex3f(read_BalokB[13].VX, read_BalokB[13].VY, read_BalokB[13].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[12].X, TK_BalokB[12].Y);
    glVertex3f(read_BalokB[2].VX, read_BalokB[2].VY, read_BalokB[2].VZ);

    glTexCoord2f(TK_BalokB[13].X, TK_BalokB[13].Y);
    glVertex3f(read_BalokB[9].VX, read_BalokB[9].VY, read_BalokB[9].VZ);

    glTexCoord2f(TK_BalokB[14].X, TK_BalokB[14].Y);
    glVertex3f(read_BalokB[12].VX, read_BalokB[12].VY, read_BalokB[12].VZ);

    glTexCoord2f(TK_BalokB[15].X, TK_BalokB[15].Y);
    glVertex3f(read_BalokB[5].VX, read_BalokB[5].VY, read_BalokB[5].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[15].X, TK_BalokB[15].Y);
    glVertex3f(read_BalokB[8].VX, read_BalokB[8].VY, read_BalokB[8].VZ);

    glTexCoord2f(TK_BalokB[14].X, TK_BalokB[14].Y);
    glVertex3f(read_BalokB[10].VX, read_BalokB[10].VY, read_BalokB[10].VZ);

    glTexCoord2f(TK_BalokB[13].X, TK_BalokB[13].Y);
    glVertex3f(read_BalokB[11].VX, read_BalokB[11].VY, read_BalokB[11].VZ);

    glTexCoord2f(TK_BalokB[12].X, TK_BalokB[12].Y);
    glVertex3f(read_BalokB[13].VX, read_BalokB[13].VY, read_BalokB[13].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[24].X, TK_BalokB[24].Y);
    glVertex3f(read_BalokB[14].VX, read_BalokB[14].VY, read_BalokB[14].VZ);

    glTexCoord2f(TK_BalokB[27].X, TK_BalokB[27].Y);
    glVertex3f(read_BalokB[9].VX, read_BalokB[9].VY, read_BalokB[9].VZ);

    glTexCoord2f(TK_BalokB[26].X, TK_BalokB[26].Y);
    glVertex3f(read_BalokB[15].VX, read_BalokB[15].VY, read_BalokB[15].VZ);

    glTexCoord2f(TK_BalokB[25].X, TK_BalokB[25].Y);
    glVertex3f(read_BalokB[16].VX, read_BalokB[16].VY, read_BalokB[16].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[24].X, TK_BalokB[24].Y);
    glVertex3f(read_BalokB[17].VX, read_BalokB[17].VY, read_BalokB[17].VZ);

    glTexCoord2f(TK_BalokB[27].X, TK_BalokB[27].Y);
    glVertex3f(read_BalokB[18].VX, read_BalokB[18].VY, read_BalokB[18].VZ);

    glTexCoord2f(TK_BalokB[26].X, TK_BalokB[26].Y);
    glVertex3f(read_BalokB[12].VX, read_BalokB[12].VY, read_BalokB[12].VZ);

    glTexCoord2f(TK_BalokB[25].X, TK_BalokB[25].Y);
    glVertex3f(read_BalokB[19].VX, read_BalokB[19].VY, read_BalokB[19].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[12].X, TK_BalokB[12].Y);
    glVertex3f(read_BalokB[9].VX, read_BalokB[9].VY, read_BalokB[9].VZ);

    glTexCoord2f(TK_BalokB[13].X, TK_BalokB[13].Y);
    glVertex3f(read_BalokB[15].VX, read_BalokB[15].VY, read_BalokB[15].VZ);

    glTexCoord2f(TK_BalokB[14].X, TK_BalokB[14].Y);
    glVertex3f(read_BalokB[18].VX, read_BalokB[18].VY, read_BalokB[18].VZ);

    glTexCoord2f(TK_BalokB[15].X, TK_BalokB[15].Y);
    glVertex3f(read_BalokB[12].VX, read_BalokB[12].VY, read_BalokB[12].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[15].X, TK_BalokB[15].Y);
    glVertex3f(read_BalokB[14].VX, read_BalokB[14].VY, read_BalokB[14].VZ);

    glTexCoord2f(TK_BalokB[14].X, TK_BalokB[14].Y);
    glVertex3f(read_BalokB[16].VX, read_BalokB[16].VY, read_BalokB[16].VZ);

    glTexCoord2f(TK_BalokB[13].X, TK_BalokB[13].Y);
    glVertex3f(read_BalokB[17].VX, read_BalokB[17].VY, read_BalokB[17].VZ);

    glTexCoord2f(TK_BalokB[12].X, TK_BalokB[12].Y);
    glVertex3f(read_BalokB[19].VX, read_BalokB[19].VY, read_BalokB[19].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[24].X, TK_BalokB[24].Y);
    glVertex3f(read_BalokB[20].VX, read_BalokB[20].VY, read_BalokB[20].VZ);

    glTexCoord2f(TK_BalokB[27].X, TK_BalokB[27].Y);
    glVertex3f(read_BalokB[15].VX, read_BalokB[15].VY, read_BalokB[15].VZ);

    glTexCoord2f(TK_BalokB[26].X, TK_BalokB[26].Y);
    glVertex3f(read_BalokB[21].VX, read_BalokB[21].VY, read_BalokB[21].VZ);

    glTexCoord2f(TK_BalokB[25].X, TK_BalokB[25].Y);
    glVertex3f(read_BalokB[22].VX, read_BalokB[22].VY, read_BalokB[22].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[24].X, TK_BalokB[24].Y);
    glVertex3f(read_BalokB[23].VX, read_BalokB[23].VY, read_BalokB[23].VZ);

    glTexCoord2f(TK_BalokB[27].X, TK_BalokB[27].Y);
    glVertex3f(read_BalokB[24].VX, read_BalokB[24].VY, read_BalokB[24].VZ);

    glTexCoord2f(TK_BalokB[26].X, TK_BalokB[26].Y);
    glVertex3f(read_BalokB[18].VX, read_BalokB[18].VY, read_BalokB[18].VZ);

    glTexCoord2f(TK_BalokB[25].X, TK_BalokB[25].Y);
    glVertex3f(read_BalokB[25].VX, read_BalokB[25].VY, read_BalokB[25].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[12].X, TK_BalokB[12].Y);
    glVertex3f(read_BalokB[15].VX, read_BalokB[15].VY, read_BalokB[15].VZ);

    glTexCoord2f(TK_BalokB[13].X, TK_BalokB[13].Y);
    glVertex3f(read_BalokB[21].VX, read_BalokB[21].VY, read_BalokB[21].VZ);

    glTexCoord2f(TK_BalokB[14].X, TK_BalokB[14].Y);
    glVertex3f(read_BalokB[24].VX, read_BalokB[24].VY, read_BalokB[24].VZ);

    glTexCoord2f(TK_BalokB[15].X, TK_BalokB[15].Y);
    glVertex3f(read_BalokB[18].VX, read_BalokB[18].VY, read_BalokB[18].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[15].X, TK_BalokB[15].Y);
    glVertex3f(read_BalokB[20].VX, read_BalokB[20].VY, read_BalokB[20].VZ);

    glTexCoord2f(TK_BalokB[14].X, TK_BalokB[14].Y);
    glVertex3f(read_BalokB[22].VX, read_BalokB[22].VY, read_BalokB[22].VZ);

    glTexCoord2f(TK_BalokB[13].X, TK_BalokB[13].Y);
    glVertex3f(read_BalokB[23].VX, read_BalokB[23].VY, read_BalokB[23].VZ);

    glTexCoord2f(TK_BalokB[12].X, TK_BalokB[12].Y);
    glVertex3f(read_BalokB[25].VX, read_BalokB[25].VY, read_BalokB[25].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[28].X, TK_BalokB[28].Y);
    glVertex3f(read_BalokB[26].VX, read_BalokB[26].VY, read_BalokB[26].VZ);

    glTexCoord2f(TK_BalokB[31].X, TK_BalokB[31].Y);
    glVertex3f(read_BalokB[21].VX, read_BalokB[21].VY, read_BalokB[21].VZ);

    glTexCoord2f(TK_BalokB[30].X, TK_BalokB[30].Y);
    glVertex3f(read_BalokB[27].VX, read_BalokB[27].VY, read_BalokB[27].VZ);

    glTexCoord2f(TK_BalokB[29].X, TK_BalokB[29].Y);
    glVertex3f(read_BalokB[28].VX, read_BalokB[28].VY, read_BalokB[28].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[0].X, TK_BalokB[0].Y);
    glVertex3f(read_BalokB[27].VX, read_BalokB[27].VY, read_BalokB[27].VZ);

    glTexCoord2f(TK_BalokB[1].X, TK_BalokB[1].Y);
    glVertex3f(read_BalokB[28].VX, read_BalokB[28].VY, read_BalokB[28].VZ);

    glTexCoord2f(TK_BalokB[2].X, TK_BalokB[2].Y);
    glVertex3f(read_BalokB[29].VX, read_BalokB[29].VY, read_BalokB[29].VZ);

    glTexCoord2f(TK_BalokB[3].X, TK_BalokB[3].Y);
    glVertex3f(read_BalokB[30].VX, read_BalokB[30].VY, read_BalokB[30].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[28].X, TK_BalokB[28].Y);
    glVertex3f(read_BalokB[29].VX, read_BalokB[29].VY, read_BalokB[29].VZ);

    glTexCoord2f(TK_BalokB[31].X, TK_BalokB[31].Y);
    glVertex3f(read_BalokB[30].VX, read_BalokB[30].VY, read_BalokB[30].VZ);

    glTexCoord2f(TK_BalokB[30].X, TK_BalokB[30].Y);
    glVertex3f(read_BalokB[24].VX, read_BalokB[24].VY, read_BalokB[24].VZ);

    glTexCoord2f(TK_BalokB[29].X, TK_BalokB[29].Y);
    glVertex3f(read_BalokB[31].VX, read_BalokB[31].VY, read_BalokB[31].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[16].X, TK_BalokB[16].Y);
    glVertex3f(read_BalokB[21].VX, read_BalokB[21].VY, read_BalokB[21].VZ);

    glTexCoord2f(TK_BalokB[17].X, TK_BalokB[17].Y);
    glVertex3f(read_BalokB[27].VX, read_BalokB[27].VY, read_BalokB[27].VZ);

    glTexCoord2f(TK_BalokB[18].X, TK_BalokB[18].Y);
    glVertex3f(read_BalokB[30].VX, read_BalokB[30].VY, read_BalokB[30].VZ);

    glTexCoord2f(TK_BalokB[19].X, TK_BalokB[19].Y);
    glVertex3f(read_BalokB[24].VX, read_BalokB[24].VY, read_BalokB[24].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[19].X, TK_BalokB[19].Y);
    glVertex3f(read_BalokB[26].VX, read_BalokB[26].VY, read_BalokB[26].VZ);

    glTexCoord2f(TK_BalokB[18].X, TK_BalokB[18].Y);
    glVertex3f(read_BalokB[28].VX, read_BalokB[28].VY, read_BalokB[28].VZ);

    glTexCoord2f(TK_BalokB[17].X, TK_BalokB[17].Y);
    glVertex3f(read_BalokB[29].VX, read_BalokB[29].VY, read_BalokB[29].VZ);

    glTexCoord2f(TK_BalokB[16].X, TK_BalokB[16].Y);
    glVertex3f(read_BalokB[31].VX, read_BalokB[31].VY, read_BalokB[31].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[32].X, TK_BalokB[32].Y);
    glVertex3f(read_BalokB[2].VX, read_BalokB[2].VY, read_BalokB[2].VZ);

    glTexCoord2f(TK_BalokB[33].X, TK_BalokB[33].Y);
    glVertex3f(read_BalokB[3].VX, read_BalokB[3].VY, read_BalokB[3].VZ);

    glTexCoord2f(TK_BalokB[34].X, TK_BalokB[34].Y);
    glVertex3f(read_BalokB[8].VX, read_BalokB[8].VY, read_BalokB[8].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[7].X, TK_BalokB[7].Y);
    glVertex3f(read_BalokB[3].VX, read_BalokB[3].VY, read_BalokB[3].VZ);

    glTexCoord2f(TK_BalokB[4].X, TK_BalokB[4].Y);
    glVertex3f(read_BalokB[4].VX, read_BalokB[4].VY, read_BalokB[4].VZ);

    glTexCoord2f(TK_BalokB[5].X, TK_BalokB[5].Y);
    glVertex3f(read_BalokB[13].VX, read_BalokB[13].VY, read_BalokB[13].VZ);

    glTexCoord2f(TK_BalokB[6].X, TK_BalokB[6].Y);
    glVertex3f(read_BalokB[8].VX, read_BalokB[8].VY, read_BalokB[8].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[37].X, TK_BalokB[37].Y);
    glVertex3f(read_BalokB[5].VX, read_BalokB[5].VY, read_BalokB[5].VZ);

    glTexCoord2f(TK_BalokB[36].X, TK_BalokB[36].Y);
    glVertex3f(read_BalokB[4].VX, read_BalokB[4].VY, read_BalokB[4].VZ);

    glTexCoord2f(TK_BalokB[35].X, TK_BalokB[35].Y);
    glVertex3f(read_BalokB[13].VX, read_BalokB[13].VY, read_BalokB[13].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[32].X, TK_BalokB[32].Y);
    glVertex3f(read_BalokB[9].VX, read_BalokB[9].VY, read_BalokB[9].VZ);

    glTexCoord2f(TK_BalokB[33].X, TK_BalokB[33].Y);
    glVertex3f(read_BalokB[10].VX, read_BalokB[10].VY, read_BalokB[10].VZ);

    glTexCoord2f(TK_BalokB[34].X, TK_BalokB[34].Y);
    glVertex3f(read_BalokB[14].VX, read_BalokB[14].VY, read_BalokB[14].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[7].X, TK_BalokB[7].Y);
    glVertex3f(read_BalokB[10].VX, read_BalokB[10].VY, read_BalokB[10].VZ);

    glTexCoord2f(TK_BalokB[4].X, TK_BalokB[4].Y);
    glVertex3f(read_BalokB[11].VX, read_BalokB[11].VY, read_BalokB[11].VZ);

    glTexCoord2f(TK_BalokB[5].X, TK_BalokB[5].Y);
    glVertex3f(read_BalokB[19].VX, read_BalokB[19].VY, read_BalokB[19].VZ);

    glTexCoord2f(TK_BalokB[6].X, TK_BalokB[6].Y);
    glVertex3f(read_BalokB[14].VX, read_BalokB[14].VY, read_BalokB[14].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[37].X, TK_BalokB[37].Y);
    glVertex3f(read_BalokB[12].VX, read_BalokB[12].VY, read_BalokB[12].VZ);

    glTexCoord2f(TK_BalokB[36].X, TK_BalokB[36].Y);
    glVertex3f(read_BalokB[11].VX, read_BalokB[11].VY, read_BalokB[11].VZ);

    glTexCoord2f(TK_BalokB[35].X, TK_BalokB[35].Y);
    glVertex3f(read_BalokB[19].VX, read_BalokB[19].VY, read_BalokB[19].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[32].X, TK_BalokB[32].Y);
    glVertex3f(read_BalokB[15].VX, read_BalokB[15].VY, read_BalokB[15].VZ);

    glTexCoord2f(TK_BalokB[33].X, TK_BalokB[33].Y);
    glVertex3f(read_BalokB[16].VX, read_BalokB[16].VY, read_BalokB[16].VZ);

    glTexCoord2f(TK_BalokB[34].X, TK_BalokB[34].Y);
    glVertex3f(read_BalokB[20].VX, read_BalokB[20].VY, read_BalokB[20].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[7].X, TK_BalokB[7].Y);
    glVertex3f(read_BalokB[16].VX, read_BalokB[16].VY, read_BalokB[16].VZ);

    glTexCoord2f(TK_BalokB[4].X, TK_BalokB[4].Y);
    glVertex3f(read_BalokB[17].VX, read_BalokB[17].VY, read_BalokB[17].VZ);

    glTexCoord2f(TK_BalokB[5].X, TK_BalokB[5].Y);
    glVertex3f(read_BalokB[25].VX, read_BalokB[25].VY, read_BalokB[25].VZ);

    glTexCoord2f(TK_BalokB[6].X, TK_BalokB[6].Y);
    glVertex3f(read_BalokB[20].VX, read_BalokB[20].VY, read_BalokB[20].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[37].X, TK_BalokB[37].Y);
    glVertex3f(read_BalokB[18].VX, read_BalokB[18].VY, read_BalokB[18].VZ);

    glTexCoord2f(TK_BalokB[36].X, TK_BalokB[36].Y);
    glVertex3f(read_BalokB[17].VX, read_BalokB[17].VY, read_BalokB[17].VZ);

    glTexCoord2f(TK_BalokB[35].X, TK_BalokB[35].Y);
    glVertex3f(read_BalokB[25].VX, read_BalokB[25].VY, read_BalokB[25].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[32].X, TK_BalokB[32].Y);
    glVertex3f(read_BalokB[21].VX, read_BalokB[21].VY, read_BalokB[21].VZ);

    glTexCoord2f(TK_BalokB[33].X, TK_BalokB[33].Y);
    glVertex3f(read_BalokB[22].VX, read_BalokB[22].VY, read_BalokB[22].VZ);

    glTexCoord2f(TK_BalokB[34].X, TK_BalokB[34].Y);
    glVertex3f(read_BalokB[26].VX, read_BalokB[26].VY, read_BalokB[26].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[7].X, TK_BalokB[7].Y);
    glVertex3f(read_BalokB[22].VX, read_BalokB[22].VY, read_BalokB[22].VZ);

    glTexCoord2f(TK_BalokB[4].X, TK_BalokB[4].Y);
    glVertex3f(read_BalokB[23].VX, read_BalokB[23].VY, read_BalokB[23].VZ);

    glTexCoord2f(TK_BalokB[5].X, TK_BalokB[5].Y);
    glVertex3f(read_BalokB[31].VX, read_BalokB[31].VY, read_BalokB[31].VZ);

    glTexCoord2f(TK_BalokB[6].X, TK_BalokB[6].Y);
    glVertex3f(read_BalokB[26].VX, read_BalokB[26].VY, read_BalokB[26].VZ);
    glEnd();

    glBegin(GL_POLYGON);
    glTexCoord2f(TK_BalokB[37].X, TK_BalokB[37].Y);
    glVertex3f(read_BalokB[24].VX, read_BalokB[24].VY, read_BalokB[24].VZ);

    glTexCoord2f(TK_BalokB[36].X, TK_BalokB[36].Y);
    glVertex3f(read_BalokB[23].VX, read_BalokB[23].VY, read_BalokB[23].VZ);

    glTexCoord2f(TK_BalokB[35].X, TK_BalokB[35].Y);
    glVertex3f(read_BalokB[31].VX, read_BalokB[31].VY, read_BalokB[31].VZ);
    glEnd();
}

Sampai Ketemu lagi di artikel berikutnya


Heriady
heriady.yoh@gmail.com


Download program tekstur balok bengkok 3D tinggal klik link ini, ngak usah repot-repot ngetik lagi.


Sumber
Artikel ini bersumber dari buku Pemrograman Grafik 3D menggunakan C & OpenGL, karangan Heriady (halaman 130 s/d 144)












Artikel terkait
Program balok 3D solid
Program pipa 3D solid
Program meja 3D
Program tangki air 3D

2 komentar:

  1. Perkenalkan, saya dari tim kumpulbagi. Saya ingin tau, apakah kiranya anda berencana untuk mengoleksi files menggunakan hosting yang baru?
    Jika ya, silahkan kunjungi website ini www.kumpulbagi.com untuk info selengkapnya.

    Di sana anda bisa dengan bebas share dan mendowload foto-foto keluarga dan trip, music, video, filem dll dalam jumlah dan waktu yang tidak terbatas, setelah registrasi terlebih dahulu. Gratis :)

    BalasHapus
  2. saat ini sudah cukup untuk blog ini menggunakan google drive dan ziddu, trims atas penawarannya mungkin lain kali

    BalasHapus
